BiPAP AVAPS Ventilator
BiPAP Ventilator
This product is no longer available

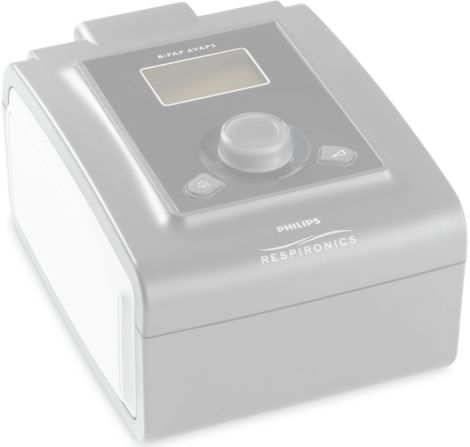

BiPAP AVAPS

Ventilator

This product is no longer available

Find similar products

Aligned with the same platform as our System One sleep therapy technology, the Philips Respironics BiPAP AVAPS Non-Invasive ventilator provides the comfort of pressure ventilation and the consistent efficacy of assured tidal volume.

Contact technical support

Documentation

Brochure (1)

Brochure

Brochure (1)

Brochure

See all documentation

Brochure (1)

Brochure

Specifications

Comfort features
Comfort features
Modes
  • CPAP, S, S/T, PC, T
Flex comfort
  • Bi-Flex
Encore/DirectView data capture and reporting
Encore/DirectView data capture and reporting
Patterns of use
  • Standard
Advanced event detection*
  • Standard
Reimbursement
  • RAD with backup rate
General system
General system
Starting ramp
  • 4 to EPAPmin
Dimensions
  • 18 cm L x 14 cm W x 10 cm H (7" L x 5.5" W x 4" H)
Pressure range
  • IPAP 4 - 30 cm H2O; EPAP 4 - 25 cm H2O; CPAP 4 - 20 cm H₂O
Flex pressure relief
  • 0 to 30 (S-mode)
Breath rate
  • 0 - 30 beats per minute
Warranty
  • Two years (US only)
Ramp time
  • 0 to 45 min (5-min increments) minute(s)
On-board data storage capacity (minimum)
  • up to 3 months
Weight without humidifier
  • 1.36 (3) kg (lbs)
Electrical requirements
  • 100-240 (50/60) VAC (Hz)
Filters
  • Foam and optional ultra-fine
Device setup
  • LCD/control wheel/push button
Data storage capacity Display (minimum)
  • Compliance VIC, 1-, 7- and 30-day averages
Data storage capacity SD Card (minimum)
  • >1 year(s)
Compliance meter
  • Breathing detection
Altitude compensation
  • Automatic
Humidification
  • Integrates with System One 60 Series humidifier and System One 60 Series Heated Tube humidifier
Miscellaneous
  • Lighted LEDs
Comfort features
Comfort features
Modes
  • CPAP, S, S/T, PC, T
Flex comfort
  • Bi-Flex
Encore/DirectView data capture and reporting
Encore/DirectView data capture and reporting
Patterns of use
  • Standard
Advanced event detection*
  • Standard
See all specifications
Comfort features
Comfort features
Modes
  • CPAP, S, S/T, PC, T
Flex comfort
  • Bi-Flex
Encore/DirectView data capture and reporting
Encore/DirectView data capture and reporting
Patterns of use
  • Standard
Advanced event detection*
  • Standard
Reimbursement
  • RAD with backup rate
General system
General system
Starting ramp
  • 4 to EPAPmin
Dimensions
  • 18 cm L x 14 cm W x 10 cm H (7" L x 5.5" W x 4" H)
Pressure range
  • IPAP 4 - 30 cm H2O; EPAP 4 - 25 cm H2O; CPAP 4 - 20 cm H₂O
Flex pressure relief
  • 0 to 30 (S-mode)
Breath rate
  • 0 - 30 beats per minute
Warranty
  • Two years (US only)
Ramp time
  • 0 to 45 min (5-min increments) minute(s)
On-board data storage capacity (minimum)
  • up to 3 months
Weight without humidifier
  • 1.36 (3) kg (lbs)
Electrical requirements
  • 100-240 (50/60) VAC (Hz)
Filters
  • Foam and optional ultra-fine
Device setup
  • LCD/control wheel/push button
Data storage capacity Display (minimum)
  • Compliance VIC, 1-, 7- and 30-day averages
Data storage capacity SD Card (minimum)
  • >1 year(s)
Compliance meter
  • Breathing detection
Altitude compensation
  • Automatic
Humidification
  • Integrates with System One 60 Series humidifier and System One 60 Series Heated Tube humidifier
Miscellaneous
  • Lighted LEDs
  • Philips Respironics devices with advanced event detection detect, respond to (some models), and log these advanced events: Apnea Hypopnea Index (AHI), respiratory-related arousal (RERA), snore, flow limitation (FL), leak, vibratory snore (VS), obstructive airway apnea (OA), large leak (LL), clear airway apnea (CA), periodic breathing (PB), and hypopnea (H).
